Warthog

D-ROTO Nozzles

Free-spinning rotational nozzles with an aggressive vibration to knock hard materials loose

For more difficult deposits like mineral accumulation, hard greases, concrete, and grout wash, you need a vibrating D-Roto rotational tool. Balanced rotation coupled with powerful vibration to clear hard blockages, the strong vibration generated by an asymmetrical rotor unleashes a torrent of force on hard-to-clean material. The D-Roto dissolves buildup on heavily soiled pipe walls, with several options of jet patterns (with or without thrust nozzles) to cater to the job’s unique needs. These tools are not intended for more fragile pipe materials due to the forceful vibrating action, ideally working in tandem with a camera system to monitor the tool in action. Fresh water only.

IDEAL FOR: Stubborn deposits like mineral accumulation, hard greases, concrete, and grout wash.

Duebre RTK sewer nozzle

RTK

Free-rotating, pre-jetted cleaning power for flushing strong pipe deposits and heat exchangers

The most popular of the D-Roto line, the RTK vibrates and rotates, making it ideal for flushing pipelines and their cross connections from strong grease deposits and heat exchangers. Operates with low pump power, with two tangential 80-degree ports on the sides and two half-tangential thrusting/flushing ports at 45 to the rear. This combination jet pattern dedicates 60-70% thrust from its powerful rear jets to travel down the pipe, with the remaining 30-40% power directed through its free-spinning side jets for a 360-degree clean.

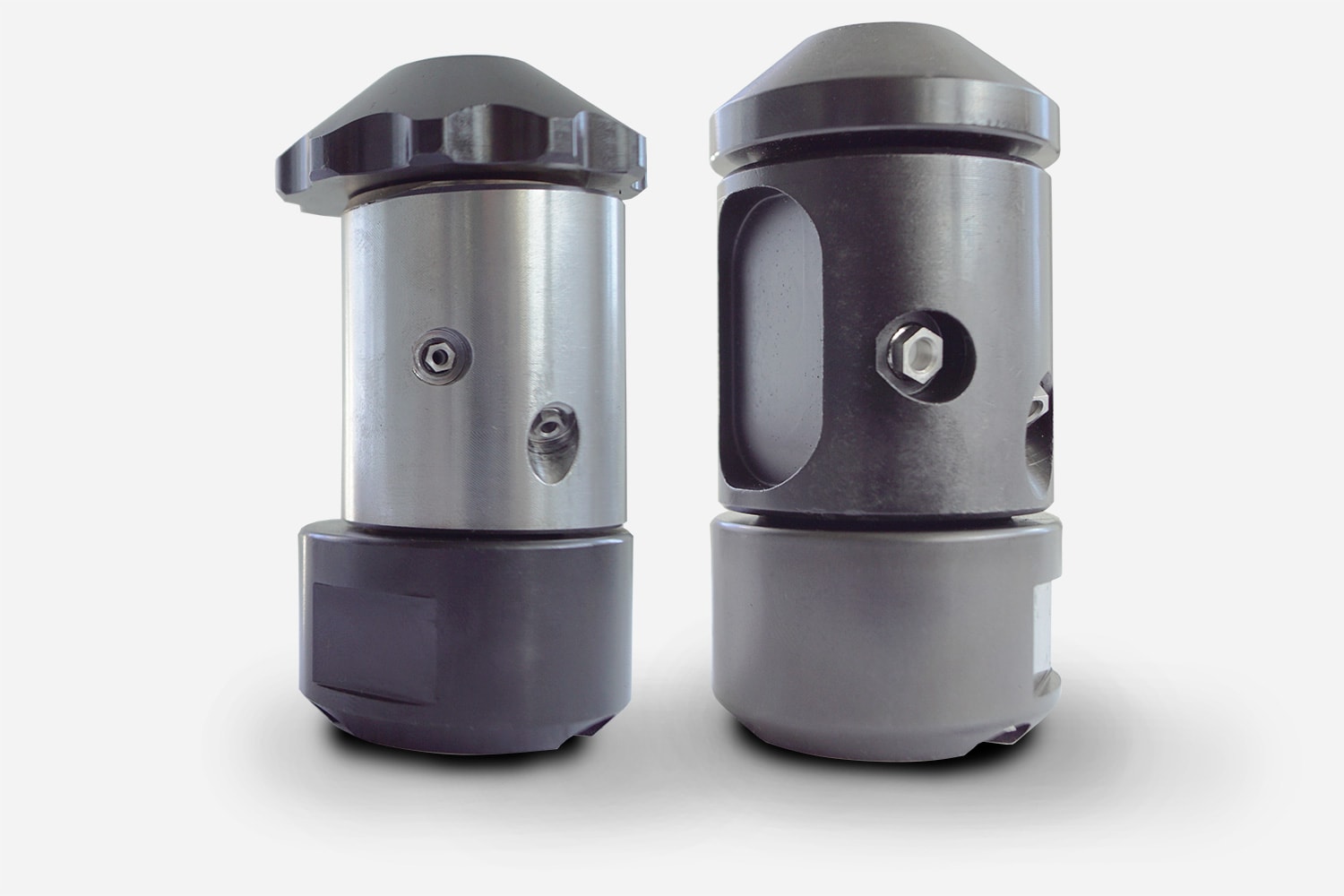

Duebre D-ROTO RTK-VIP sewer nozzles

RTK-VIP

Free-rotating cleaning power couples with strong vibration to break up hard deposits and concrete

With nozzle positions identical to the RTK (two tangential 80-degree ports on the sides and two half-tangential thrusting/flushing ports at 45 to the rear), this free-rotating nozzle features a strong, hammer-like vibration generated by an excentric rotor. Mineral deposits, hard greases, concrete, and mortar are tackled easily by the aggressive bounce of the vibrating head. This combination jet pattern dedicates 60-70% thrust from its powerful rear jets to travel down the pipe, with the remaining 30-40% power directed through its free-spinning side jets for a 360-degree clean.

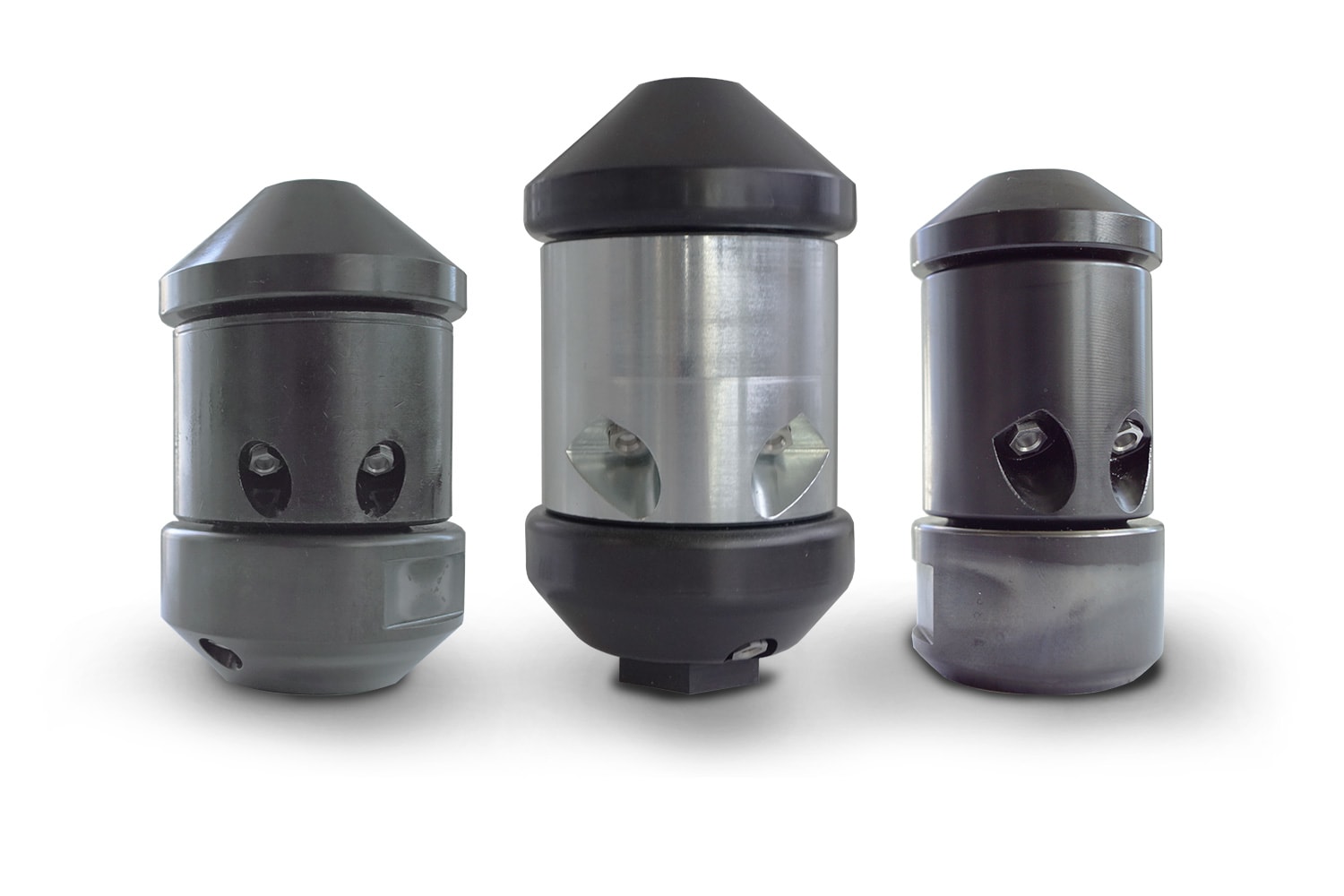

Duebre D-Roto RTH sewer nozzles

RTH

Free-rotating rear cleaning power that uses less water to flush soft roots and loose material

The RTH is a free-spinning rotary nozzle with four rear-pointing cutting jets that achieve both flushing and propulsion, utilizing less water overall by performing both functions simultaneously. Suitable for flushing large quantities of soft roots and loose material, as well as breaking up and rinsing out lime and concrete sludge deposits. Also available without thrust.

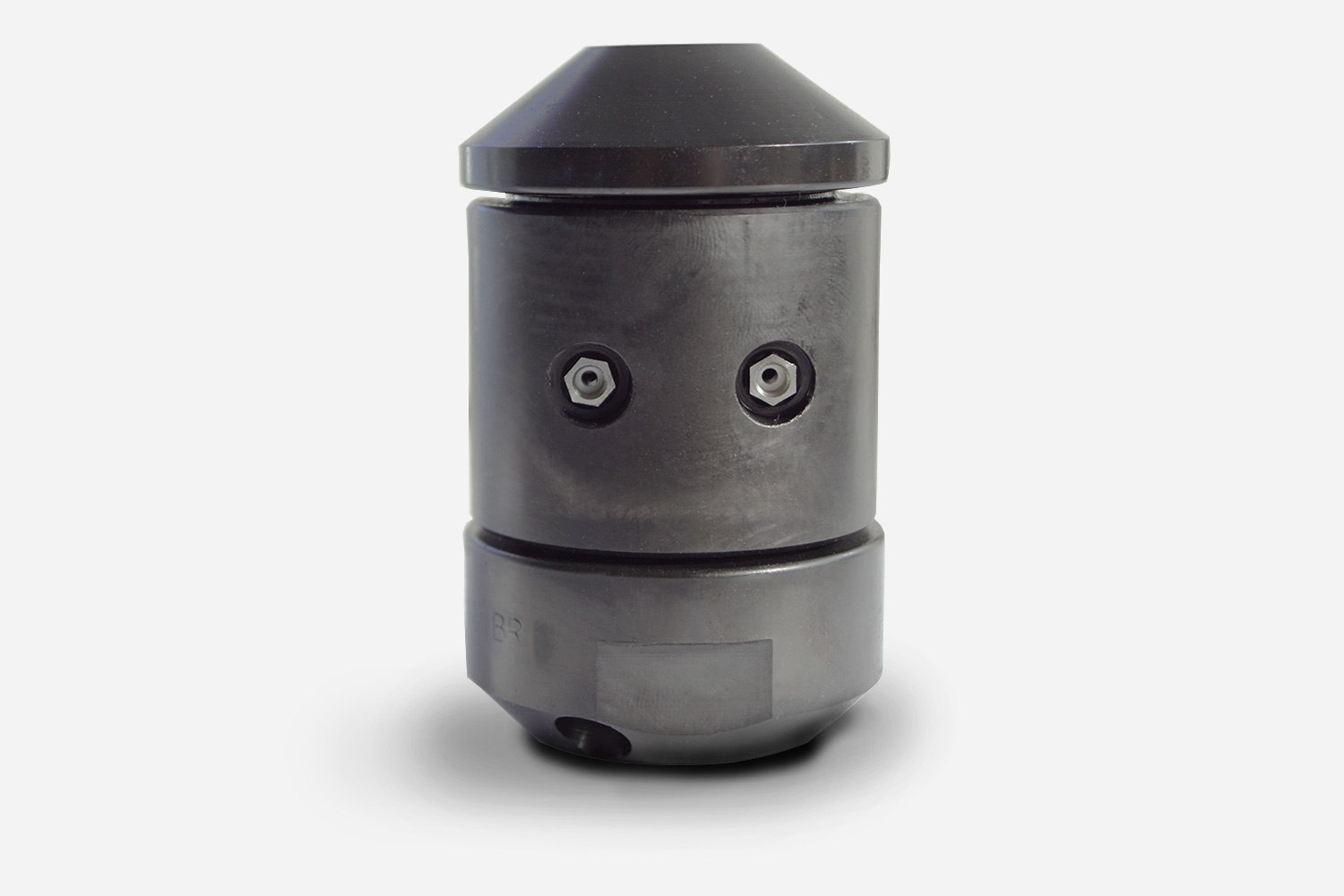

Duebre D-Roto RTS sewer nozzle

RTS

Free-rotating side cleaning power designed for pipes with cross bores and other transverse holes

Rotating nozzle with 4 side cleaning jets arranged tangentially at 80 degrees and 3 thrust ports. Designed for drainage pipes with transverse holes like cross bores, the nozzle effectively cleans all hard-to-reach angles with great force to flush out corners, avoiding the dreaded striping effect as the side jets spin and clean.

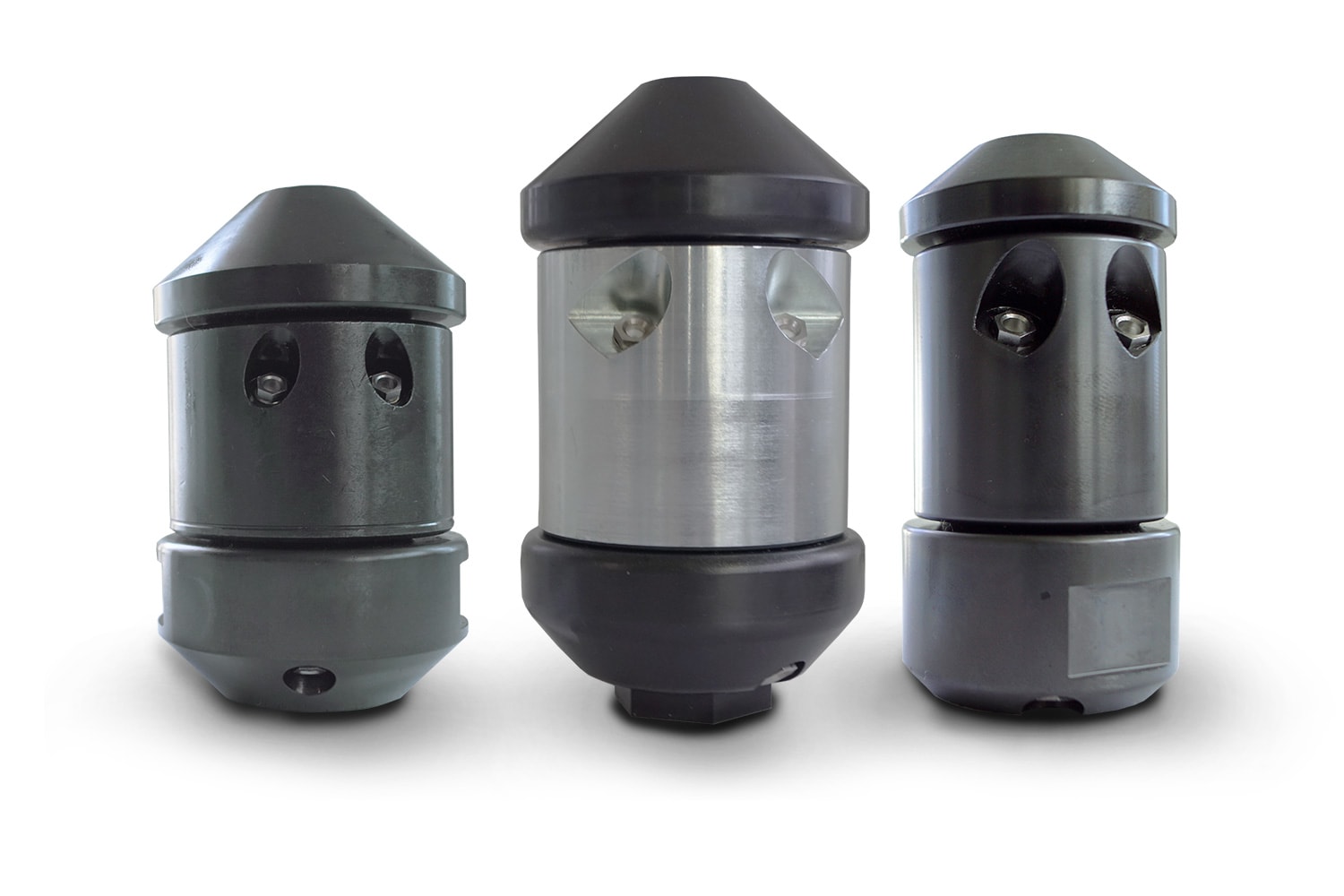

Duebre D-ROTO RTV sewer nozzles

RTV

Free-rotating front cleaning power with unplugging and flushing capabilities

The RTV is a free-spinning nozzle has a front jet that packs intense unplugging power, while the side jets aim slightly forward at the pipe walls to release any residues or buildup, and the rear thrust nozzles flush the material out. Ideal for the rinsing of pipes in hydraulic tube drives, the removal of ice in manholes, and house connections from the inside to the outside.

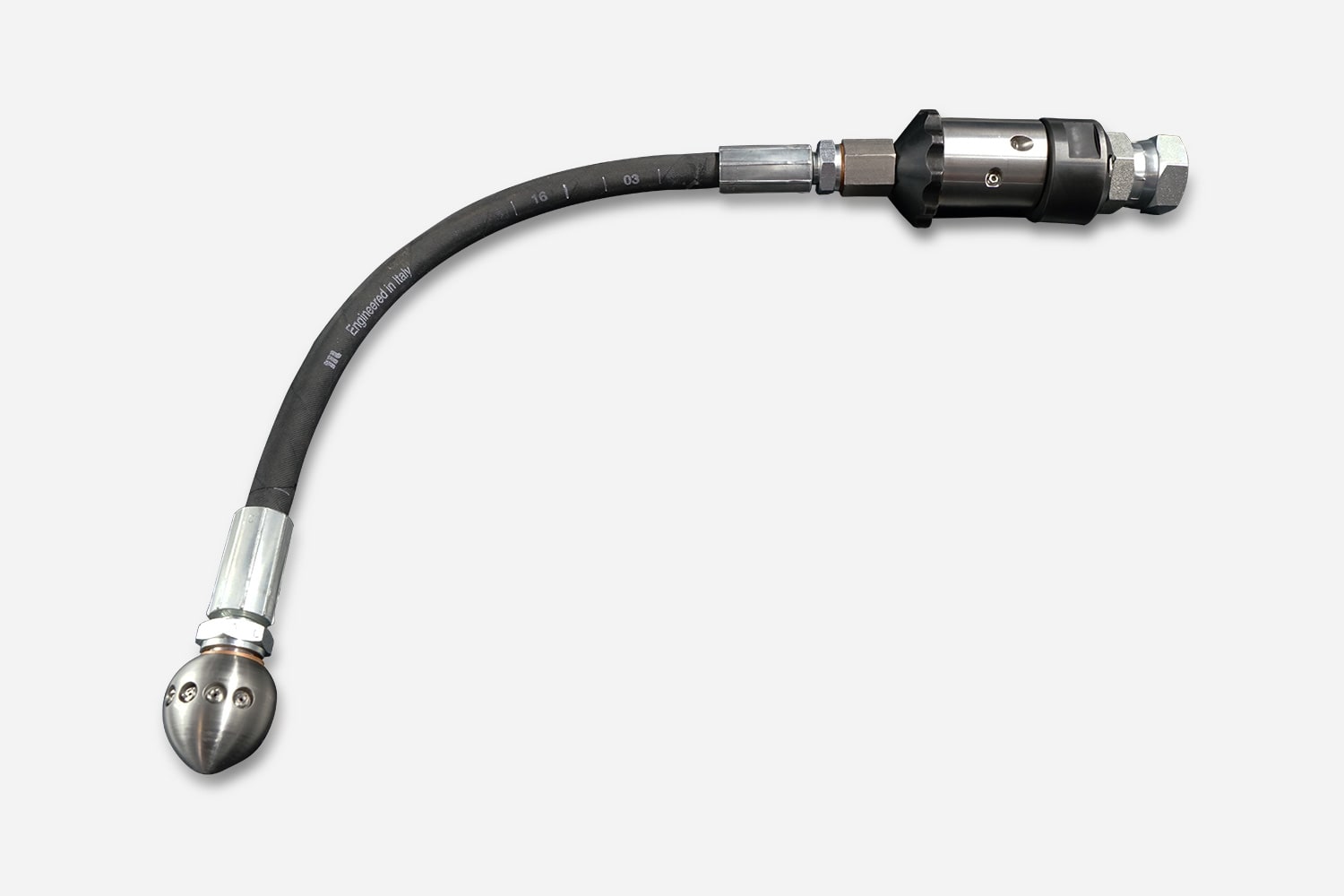

Duebre D-Roto guiding sewer nozzles

RTG

Enabling video feedback for precision cleaning of loose debris

The power of a rotating nozzle is enhanced with the use of a guiding nozzle, able to be moved in any position by turning the hose to target roots, gravel, sediment, silt deposits, and other loose accumulations. Also available with an asymmetrical rotation body
